Standard Loadout Upgrade View

Standard Loadout Upgrade View

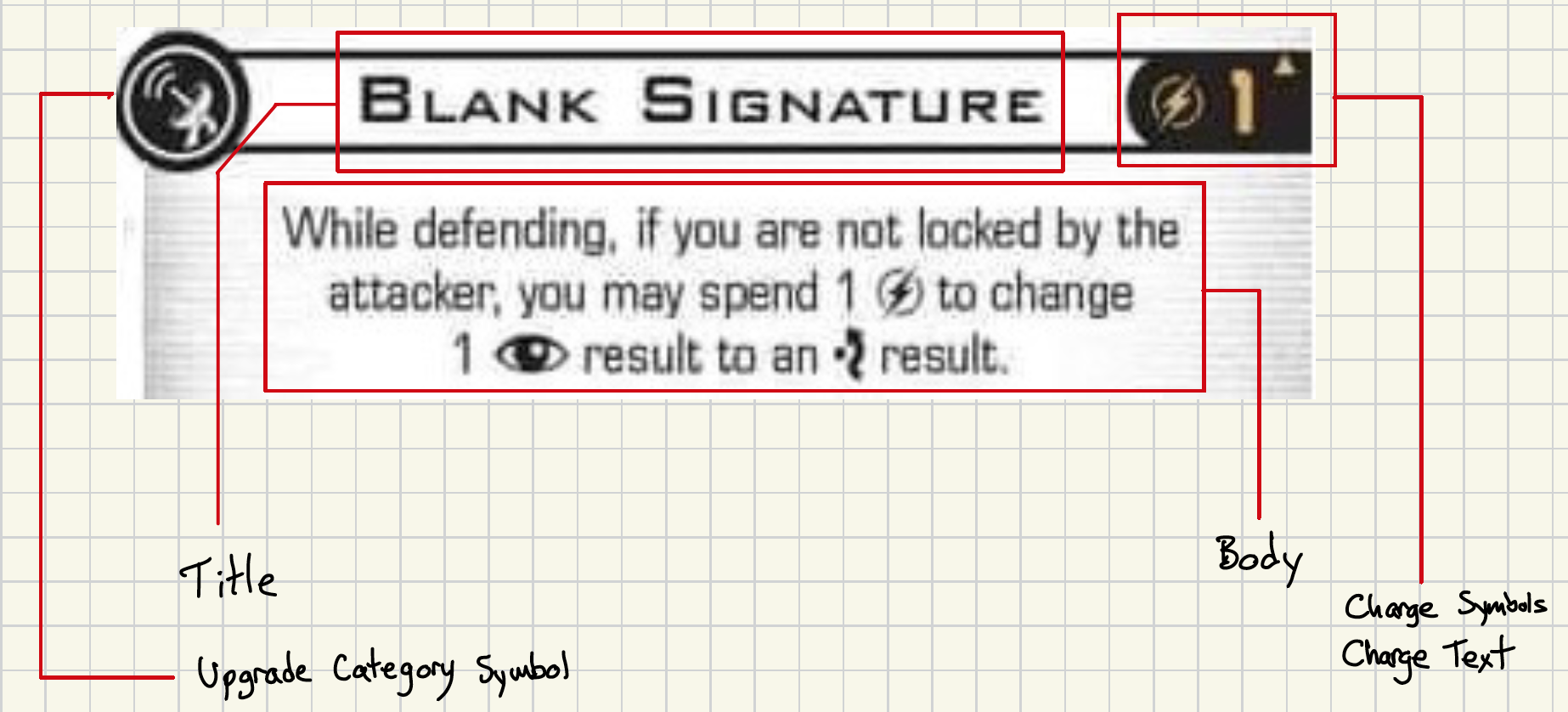

The upgrade view for a standard loadout should look like:

• Which is represented by a Swift UI view

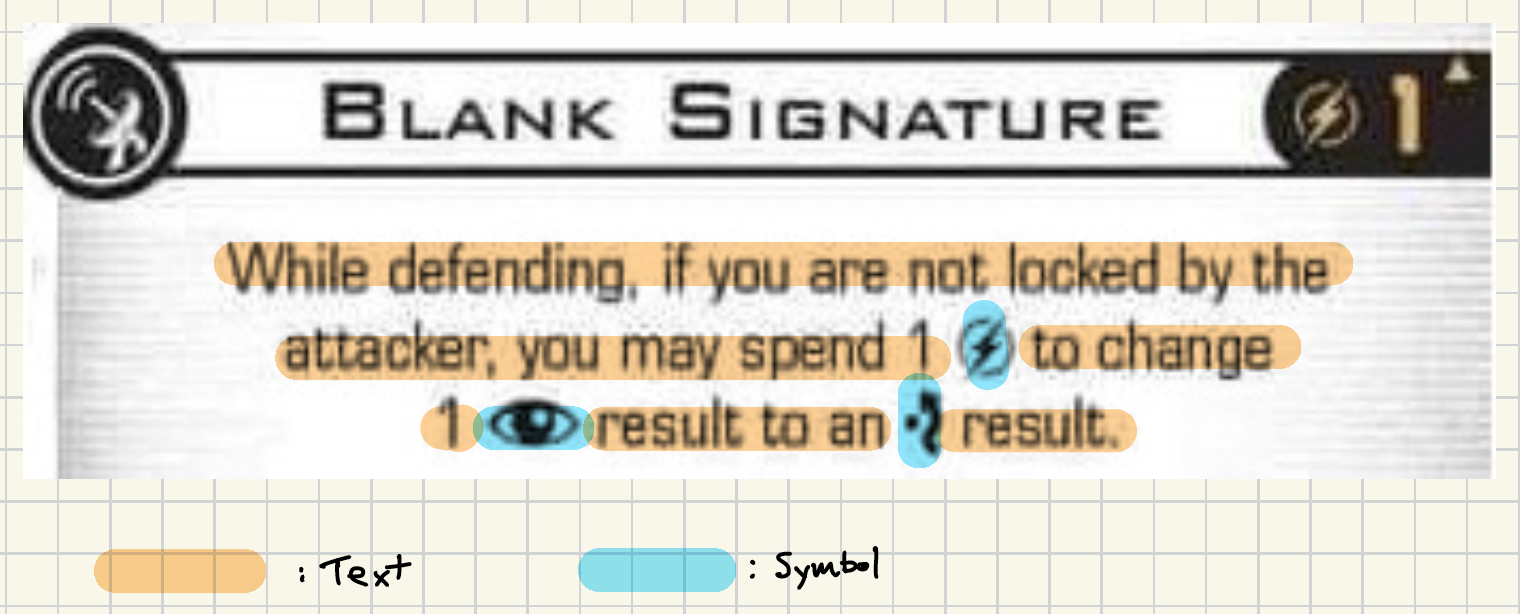

• The body consists of Text and Symbol segments

• The upgrade text is taken from the Blank Signature sides.ability node in upgrades/sensor.json
• findDelimitedSubstrings(input:) -> [String] returns an array of the substrings. This function is a member of UpgradeTextView class (Views/UpgradeView.swift)

Index	Value
0	“While defending, if you are “
1	“[Charge]”
2	” to change 1 “
3	“[Focus]”
4	” result to an “
5	“[Evade]”
6	” result.”

• createSubstringArray(input:) -> [SubstringType] converts the string array into a [SubstringType] array

|Index|Value| |-|-| |0|SubstringType.Text(“While defending, if you are “)| |1|SubstringType.Symbol(“[Charge]”)| more…

• Merge any contiguous substrings, if needed.

  For the cases where the string is “ perform a [1 [Straight]] “ in the sides.ability node of the upgrade.

mergeSameSubstringTypes(_ input: [SubstringType]) -> [SubstringType]

• Build a SwiftUI view from the [SubstringType] array.

func buildViews(_ input: [SubstringType]) -> some View {
    func buildView(_ type: SubstringType) -> Text {
        switch(type) {
            case .text(let val):
            return Text(val)
        case .symbol(let val):
            return Text(getSymbol(val))
                .font(.custom("xwing-miniatures", size: 18))
        }
    }

    return VStack(alignment: .center) {
        input.reduce(Text(""), { $0 + buildView($1) } )
    }
}

getSymbol(val:) returns a character from the xwing-miniatures font that corresponds to the associated type of the symbol in the [SubstringType] array. (SubstringType.Symbol("[Charge]") corresponds to the g character in the xwing-miniatures font)

flowchart TD
    A[Redux_ShipView.body.content] --> B[Redux_ShipView.imageOverlayView]
    B --> C[Redux_ShipView.imageOverlayView.upgradeImageOverlay]
    C --> D[Redux_ShipView.imageOverlayView.upgradeImageOverlay.upgradeCardImage]
    D --> E[UpgradeCardFlipView]
    D -->|selectedUpgrade.upgrade.isStandardLoadoutUpgrade| F[UpgradeTextView]

classDiagram

class Redux_ShipView {
    var viewModel: Redux_ShipViewModel
    "@State var showImageOverlay: Bool = false"
    "@State var selectedUpgrade: UpgradeView.UpgradeViewModel? = nil"
}

class UpgradesView {
    let upgrades: [Upgrade]
    @Binding var showImageOverlay: Bool
    "@Binding var selectedUpgrade: UpgradeView.UpgradeViewModel?"
}

The UpgradesView is built, passing in the [Upgrades] and any @State variables which are used as @Binding variables in UpgradesView.

Redux_ShipView.body.content.footer:

var footer: some View {
    UpgradesView(upgrades: viewModel.shipPilot.upgrades,
                    showImageOverlay: $showImageOverlay,
                    imageOverlayUrl: $imageOverlayUrl,
                    imageOverlayUrlBack: $imageOverlayUrlBack,
                    selectedUpgrade: $selectedUpgrade)
        .environmentObject(viewModel)
}

UpgradesView.swift:

ForEach(upgrades) {
    UpgradeView(viewModel: UpgradeView.UpgradeViewModel(upgrade: $0))
    { upgradeViewModel in
        self.showImageOverlay = true
        self.imageOverlayUrl = upgradeViewModel.imageUrl
        self.imageOverlayUrlBack = upgradeViewModel.imageUrlBack
        self.selectedUpgrade = upgradeViewModel
    }
    .environmentObject(viewModel)
}

The closure passed into UpgradeView is executed when an upgrade button is tapped.

• The showImageOverlay is set to true when the upgrade button is tapped
• The selectedUpgrade is set when the upgrade button in the footer of the ship view is tapped. It is set to the UpgradeView.UpgradeViewModel which is initialized from the Upgrade

The body of Redux_ShipView adds the imageOverlayView as an overlay:

Redux_ShipView.body:

return VStack(alignment: .leading) {
                headerView
                bodyContent
                footer
            }
            .padding()
            .overlay(imageOverlayView)

The showImageOverlay toggles whether the upgradeImageOverlay or the defaultView is displayed: Redux_ShipView.imageOverlayView:

if (self.showImageOverlay == true) {
    return AnyView(upgradeImageOverlay)
} else {
    return defaultView
}

The upgradeImageOverlay references the upgradeCardImage which displays the UpgradeCardFlipView:

if (self.imageOverlayUrlBack != "") {
    guard let selectedUpgrade = self.selectedUpgrade else { return emptyView }

    guard let upgradeState = getUpgradeStateData(upgrade: selectedUpgrade.upgrade) else { return emptyView }

    // if not standard loadout upgrade
    ret =
        UpgradeCardFlipView(
            side: (upgradeState.selected_side == 0) ? false : true,
            frontUrl: self.imageOverlayUrl,
            backUrl: self.imageOverlayUrlBack,
            viewModel: self.viewModel) { side in
                self.viewModel.update(
                    type: PilotStatePropertyType.selectedSide(upgradeState,
                                                                side), active: -1, inactive: -1
                )
        }.eraseToAnyView()

    // if standard loadout upgrade
    // ret = UpgradeTextView
}

flowchart TD
    A[Redux_ShipView.body.content.footer] -->|Upgrades, selectedUpgrade| B[UpgradesView]
    B -->|UpgradeViewModel| C[UpgradeView]
    C -->|selectedUpgrade, showImageOverlay| D[Redux_ShipView.imageOverlayView]
    D --> E[upgradeImageOverlay]
    E --> F[UpgradeCardFlipView]
    E -->|selectedUpgrade.isStandardLoadout| G[UpgradeTextView]

Tasks

• Add var isStandardLoadout: Bool = false to Upgrade
• Set isStandardLoadout when building the Redux_ShipViewModel.shipPilot.upgrades that is injected into Redux_ShipView from ContentView.Redux_buildView(). which is triggered from tapping a ship card on the squad view.

ContentView.swift

func Redux_buildView(type: ViewType) -> AnyView {
    case .shipViewNew(let shipPilot, let squad):
                return buildShipView(shipPilot: shipPilot, squad: squad)
}

func buildShipView(shipPilot: ShipPilot, squad: Squad) -> AnyView {
    let viewModel = Redux_ShipViewModel(moc: self.moc,
                                    shipPilot: shipPilot,
                                    squad: squad,
                                    pilotStateService: self.diContainer.pilotStateService,
                                    store: store)

    return AnyView(Redux_ShipView(viewModel: viewModel)
        .environmentObject(self)
    )
}

flowchart TD
    A[Ship card tap on SquadView] -->|"ViewType.shipViewNew(shipPilot,squad)"| B["buildShipView(shipPilot, squad)"]
    B -->|"shipPilot, squad"| C[Redux_ShipViewModel]
    C -->|"viewModel"| D[Redux_ShipView]

flowchart TD
    Y["Redux_SquadViewNewViewModel.loadShips(squad, squadData)"] --> W["squadReducer.getShips(squad,data)"]
    W -->|squad, SquadData| C["SquadService.getShips"]
    Z["Redux_SquadView.loadShips"] --> A
    V["Redux_SquadView.content.onAppear"] --> Z
    A["factionReducer(.getShips(SquadData))"] -->|SquadData| C["SquadService.getShips"]
    B["squadReducer(.flipDialFix)"] -->|squad, SquadData| C["SquadService.getShips"]
    C -->|squad, squadPilot, pilotState| D["CacheService.getShip"]
    D -->|squad, squadPilot, pilotState| E["CacheService.getShipV1"]
    E -->|inout Ship| F["CacheService.getShipV1.getPilot"]
    F --> G["CacheService.getShipV1.getPilot.getUpgradesFromCache"]
    G --> H["CacheService.getShipV1.getPilot.getUpgradesFromCache.getUpgrade(key:)"]
    H --> I["UpgradeUtility.getUpgrades(upgradeCategory)"]
